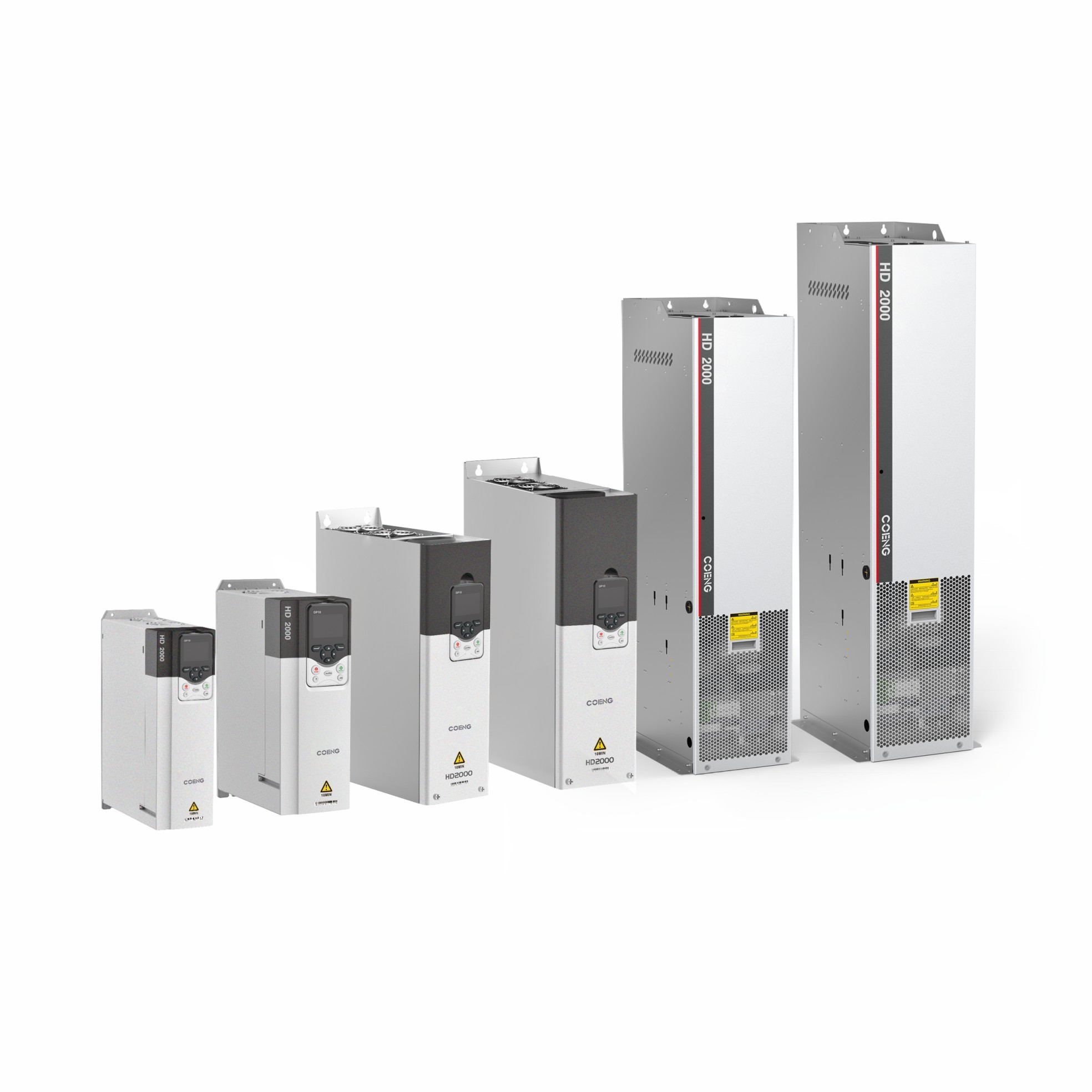

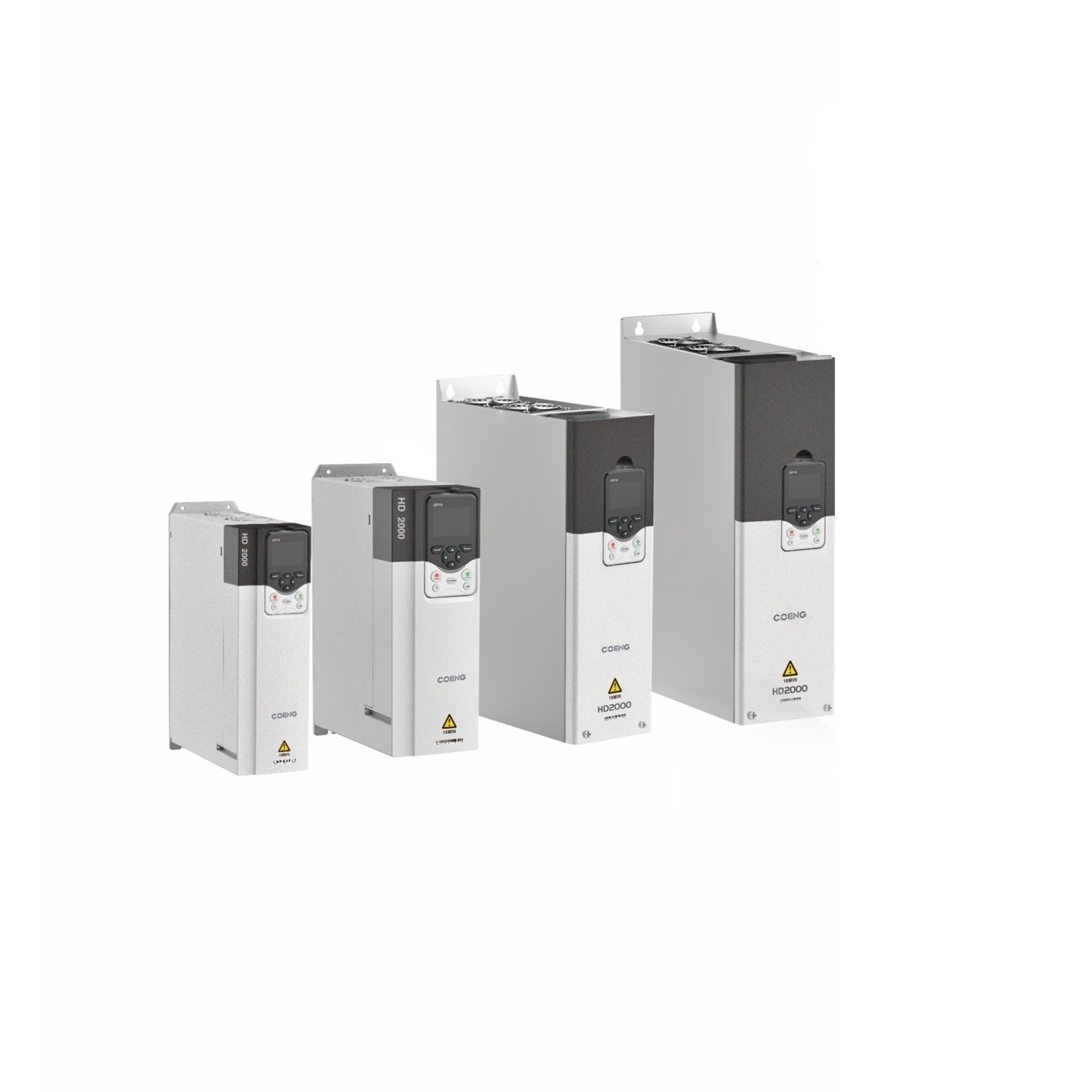

Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds

  • Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds
  • Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds
  • Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds
  • Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds
  • Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds
Lugar de origen PORCELANA
Nombre de la marca COENG
Certificación CE
Número de modelo Se trata de una serie de medidas que se aplican a las empresas de la Unión.
Cantidad de orden mínima 1
Detalles de empaquetado Caja de madera
Tiempo de entrega días 7-30working
Condiciones de pago L/C, T/T, Western Union
Capacidad de la fuente 20000SETS/YEAR

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Dispositivos de conducción única o múltiple Sistema flexible con unidades/armarios que soportan dos/cuatro cuadrantes Diseño modular Permite la flexibilidad de la aplicación y la integración integral del sistema
Unidades rectificadoras Unidades de rectificador básico/inteligente/PWM para conversión de potencia versátil Máxima potencia de unidad única El valor de las emisiones de CO2 de los combustibles fósiles de las instalaciones de refrigeración d
Niveles de tensión El valor de las emisiones de CO2 es el valor de las emisiones de CO2 de los combustibles fósiles. Max. Potencia de funcionamiento paralelo 11200kW (enfriado por aire), 22400kW (enfriado por líquido)
Resaltar

VFD drive with overload capacity

,

variable frequency drive 130% current

,

HD2000 drive 70 seconds performance
Deja un mensaje
Descripción de producto

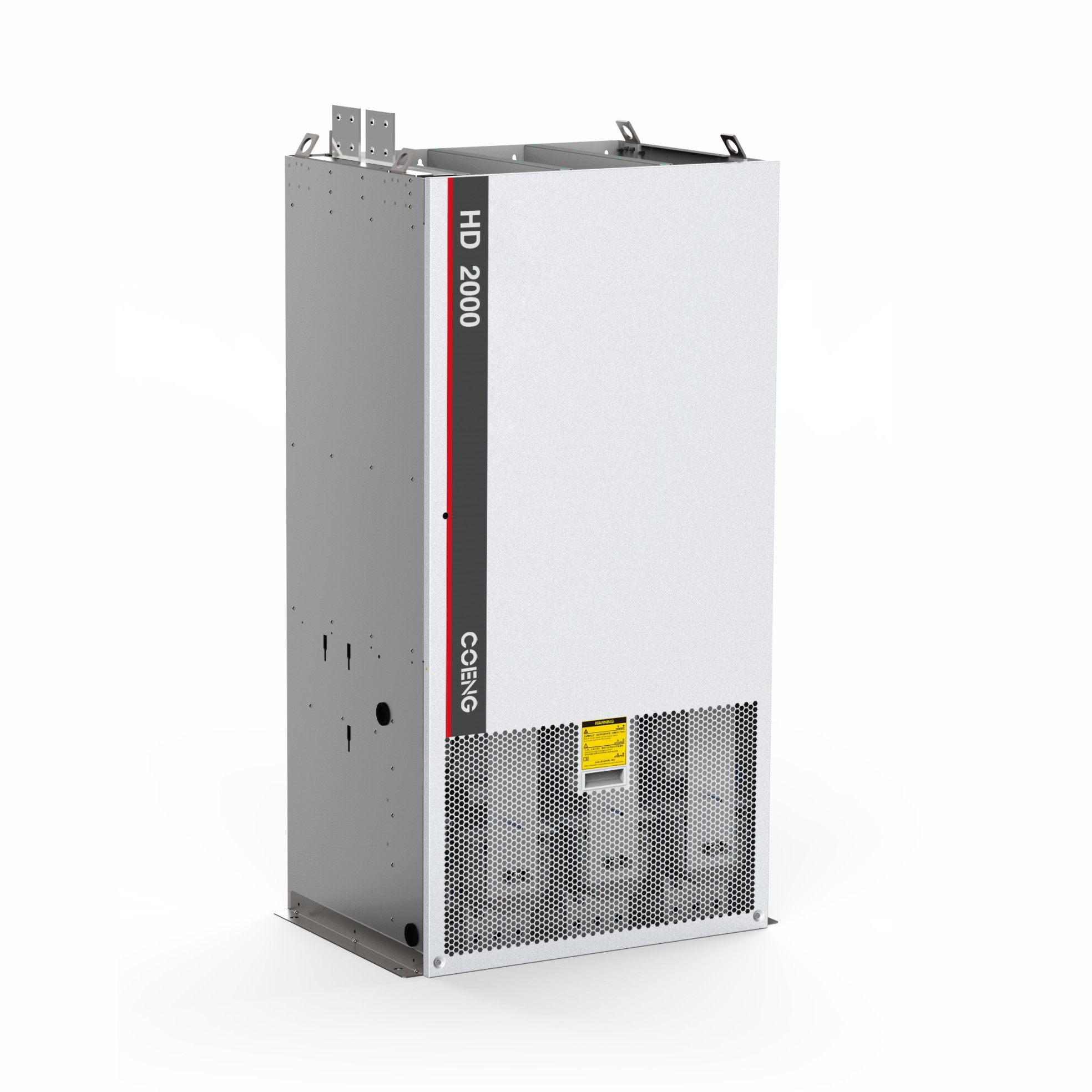

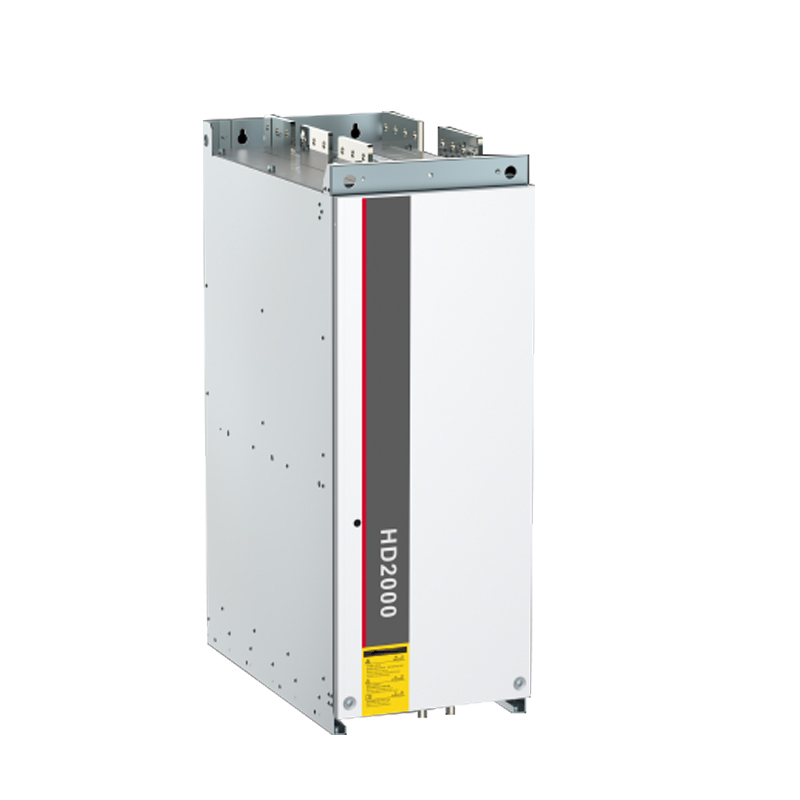

ModelHD2000 Series Low Voltage Engineering Inverter(Liquid-cooled)
Basic RectifierInput voltage4:380V～480V,6:500V～690V
Input frequency(50Hz/60Hz)±6%
Output voltageInput voltage * 1.32 (Under full-load condition)
Overload capacityRelative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency≥99% Efficiency
Protection eunctionsProtection functions: Overheating protection, soft-start protection, Interlock
protection, and more.
Intelligent rectifierInput voltage4:380V ~ 480V,6: 500V ~ 690V
Input frequency47 ~ 63Hz
Output voltageInput voltage * 1.3 (Under full-load condition)
Overload capacityRelative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency≥98.5% Efficiency
Protection functionsProtection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more
PWM rectifierInput voltage4:380V~480V,6:500V~690V,9:1140V,A:1380V
Input frequency47 ~ 63Hz
Output voltageInput voltage * 1.5 (Under rated conditions)
Overload capacityRelative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency≥98% Efficiency (Including LCL filter unit)
Power factorAdjustable (Factory setting at 1)
Protection functionsProtection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more.
InversionRated Input voltage4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc,
A:1488Vdc~2200Vdc
Output voltage0 ~ Rectifier AC input voltage
Output frequency0 ~ 500Hz
Speed rangeV/F:1:50 OLVC:1:200 CLVC:1:1000
Speed stabilityOLVC:0.2% CLVC:0.01%
Speed fluctuationOLVC:0.2% CLVC:0.1%
Starting torqueOLVC:150%(0.5Hz) CLVC:200%(0Hz)
Torque controlV/F: Unsupported OLVC:Supported CLVC: supported
Torque accuracyOLVC:5% CLVC:5%
Torque response timeOLVC:5ms CLVC:5ms
Speed response timeOLVC:100ms CLVC:100ms
Dynamic speed drop equivalentOLVC:0.5%*s CLVC:0.3%*s
Environmental conditionsTemperature-15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies
Humidity5% ~ 95% Mon-condensing
Altitude≤4000m, Derating applies from 2000m to 4000m
Mechanical dataAnti-vibration performanceComplies with IEC 60721-3-3:2002
Protection levelIP00 / IP20 / IP40
Safety levelComplies with UL 508C-2004
Cooling methodLiquid-cooled
Motor Drive VFD Inverter Typical Applicantion
Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds 0

Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds 1

Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds 2

The distinctive selling points corresponding to different countries or regions
1.Australia
  • Rugged Environmental Adaptation: Functions efficiently in high temperatures (up to 55°C with derating) and dry conditions common in Australian outback mines.
  • High Altitude Operation: Suitable for mining sites at elevations up to 4000m, ensuring consistent performance.
  • Water-Cooled High Power: Liquid-cooled models (160–2800kW) support Australia’s heavy industries like mineral processing.
  • Rapid Dynamic Response: 0.3% dynamic speed drop in CLVC mode enhances control in conveyor and pump systems.
  • Compliance with International Standards: Meets global safety and performance norms, trusted by Australian engineering firms.
2. Russia
  • Extreme Cold Performance: Operates reliably at -15°C without derating, crucial for Russia’s harsh winters.
  • High Power Range: Models up to 3400kW meet the demands of Russia’s oil, gas, and heavy machinery sectors.
  • Robust Overload Handling: 150% overload capacity ensures stability in intermittent high-load scenarios.
  • Advanced Cooling Flexibility: Air and liquid cooling options adapt to both indoor and outdoor installations.
  • Long-Distance Compatibility: Stable output over wide voltage ranges supports remote industrial sites with unstable power.
3. South Africa
  • Voltage Versatility: Handles input from 380V to 690V, accommodating South Africa’s frequent power fluctuations.
  • Efficiency in High Heat: Maintains ≥98% efficiency even in high-temperature environments common in mining and metallurgy.
  • Dust Protection (IP40): Essential for South Africa’s dusty mining and manufacturing sites.
  • Scalable Solutions: Modular design allows easy expansion from single-drive to multi-drive systems as business grows.
  • Cost Savings: High efficiency and reduced maintenance lower total cost of ownership for budget-conscious industries.
4. Mexico
  • Adaptability to Humid Climates: 5–95% humidity tolerance ensures reliability in Mexico’s coastal and tropical regions.
  • Flexible Installation: Compact and standard cabinet sizes (e.g., 400*2200*650mm) fit diverse industrial layouts.
  • High Starting Torque: 200% at 0Hz (CLVC) supports heavy initial loads in automotive and assembly lines.
  • Energy Compliance: Adjustable power factor helps meet Mexico’s evolving energy regulations.
  • Easy Integration: Compatible with both basic and smart rectifier units, simplifying upgrades in existing plants.
5. United Kingdom
  • High Efficiency for Sustainability: ≥99% efficiency supports the UK’s net-zero carbon goals by reducing energy waste.
  • Precision Control: Speed fluctuation as low as 0.1% (CLVC) ideal for high-tech sectors like aerospace and pharmaceuticals.
  • Safety and Standards: Complies with IEC and UL norms, ensuring compliance with UK’s rigorous safety regulations.
  • Compact and Powerful: Air-cooled models up to 160kW save space in urban industrial zones.
  • Multi-Drive Readiness: Supports modular drive systems for flexible automation in smart manufacturing.
