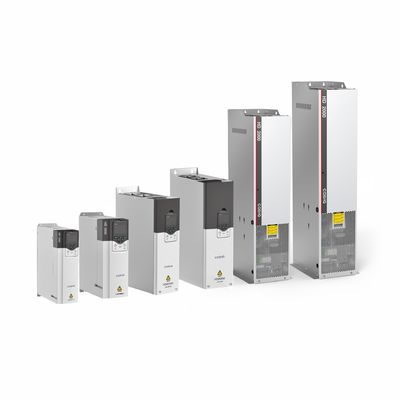

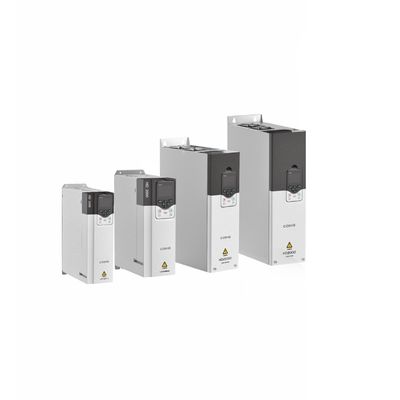

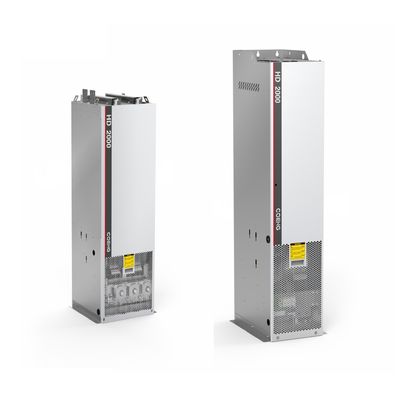

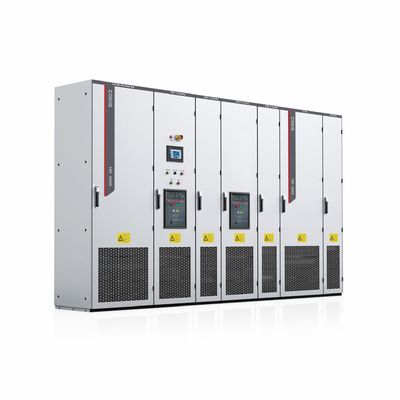

High-Efficiency HD2000 Series VFD with ≥99% Operating Efficiency for Industrial Motor Drives

  • High-Efficiency HD2000 Series VFD with ≥99% Operating Efficiency for Industrial Motor Drives
  • High-Efficiency HD2000 Series VFD with ≥99% Operating Efficiency for Industrial Motor Drives
  • High-Efficiency HD2000 Series VFD with ≥99% Operating Efficiency for Industrial Motor Drives
  • High-Efficiency HD2000 Series VFD with ≥99% Operating Efficiency for Industrial Motor Drives
Lugar de origen PORCELANA
Nombre de la marca COENG
Certificación CE
Número de modelo Se trata de una serie de medidas que se aplican a las empresas de la Unión.
Cantidad de orden mínima 1
Detalles de empaquetado Caja de madera
Tiempo de entrega días 7-30working
Condiciones de pago L/C, T/T, Western Union
Capacidad de la fuente 20000SETS/YEAR

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Dispositivos de conducción única o múltiple Sistema flexible con unidades/armarios que soportan dos/cuatro cuadrantes Diseño modular Permite la flexibilidad de la aplicación y la integración integral del sistema
Unidades rectificadoras Unidades de rectificador básico/inteligente/PWM para conversión de potencia versátil Máxima potencia de unidad única El valor de las emisiones de CO2 de los combustibles fósiles de las instalaciones de refrigeración d
Niveles de tensión El valor de las emisiones de CO2 es el valor de las emisiones de CO2 de los combustibles fósiles. Max. Potencia de funcionamiento paralelo 11200kW (enfriado por aire), 22400kW (enfriado por líquido)
Resaltar

High-Efficiency VFD for industrial motors

,

HD2000 Series Variable Frequency Drive

,

VFD with 99% operating efficiency
Deja un mensaje
Descripción de producto
Model HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled)
Basic Rectifier Input voltage 4:380V～480V,6:500V～690V
Input frequency (50Hz/60Hz)±6%
Output voltage Input voltage * 1.32 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥99% Efficiency
Protection eunctions Protection functions: Overheating protection, soft-start protection, Interlock
protection, and more.
Intelligent rectifier Input voltage 4:380V ~ 480V,6: 500V ~ 690V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.3 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98.5% Efficiency
Protection functions Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more
PWM rectifier Input voltage 4:380V~480V,6:500V~690V,9:1140V,A:1380V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.5 (Under rated conditions)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98% Efficiency (Including LCL filter unit)
Power factor Adjustable (Factory setting at 1)
Protection functions Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more.
Inversion Rated Input voltage 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc,
A:1488Vdc~2200Vdc
Output voltage 0 ~ Rectifier AC input voltage
Output frequency 0 ~ 500Hz
Speed range V/F:1:50 OLVC:1:200 CLVC:1:1000
Speed stability OLVC:0.2% CLVC:0.01%
Speed fluctuation OLVC:0.2% CLVC:0.1%
Starting torque OLVC:150%(0.5Hz) CLVC:200%(0Hz)
Torque control V/F: Unsupported OLVC:Supported CLVC: supported
Torque accuracy OLVC:5% CLVC:5%
Torque response time OLVC:5ms CLVC:5ms
Speed response time OLVC:100ms CLVC:100ms
Dynamic speed drop equivalent OLVC:0.5%*s CLVC:0.3%*s
Environmental conditions Temperature -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies
Humidity 5% ~ 95% Mon-condensing
Altitude ≤4000m, Derating applies from 2000m to 4000m
Mechanical data Anti-vibration performance Complies with IEC 60721-3-3:2002
Protection level IP00 / IP20 / IP40
Safety level Complies with UL 508C-2004
Cooling method Liquid-cooled
Motor Drive VFD Inverter Typical Applicantion

High-Efficiency HD2000 Series VFD with ≥99% Operating Efficiency for Industrial Motor Drives 0

High-Efficiency HD2000 Series VFD with ≥99% Operating Efficiency for Industrial Motor Drives 1

High-Efficiency HD2000 Series VFD with ≥99% Operating Efficiency for Industrial Motor Drives 2

The distinctive selling points corresponding to different countries or regions
1. United States

  • High Efficiency Compliance: With operating efficiency up to 99%, the HD2000 significantly reduces energy consumption, aligning with U.S. energy-saving initiatives and lowering operational costs.

  • Robust Protection Systems: Advanced overheating and overcurrent protection ensure minimal downtime in demanding industrial applications like manufacturing and logistics.

  • Wide Voltage Range: Supports input voltages from 380V to 690V, ideal for regions with variable grid stability.

  • UL Safety Certification: Complies with UL 508C-2004, providing confidence in product safety and reliability.

  • Flexible Cooling Options: Air-cooled and liquid-cooled models adapt to diverse environmental conditions, from humid coastal areas to arid inland zones.

2. Germany

  • Precision Engineering: Offers speed stability up to 0.01% with CLVC, meeting Germany’s high standards for precision in automation and robotics.

  • Energy-Efficient Operation: ≥98.5% efficiency reduces carbon footprint, supporting Germany’s green energy transition.

  • Modular Design: Enables seamless integration into multi-drive systems, perfect for Industry 4.0 smart factories.

  • High Altitude Performance: Operates efficiently up to 4000m with derating, suitable for industrial plants in elevated regions.

  • Comprehensive Protection: IGBT pass-through and interlock protections enhance system longevity in high-precision applications.

3. Japan

  • Compact and Space-Saving: Compact chassis types (e.g., 5.5–160kW) fit seamlessly into Japan’s limited industrial spaces.

  • High-Frequency Operation: Output frequency up to 500Hz supports high-speed manufacturing and electronics industries.

  • Reliable in Humid Conditions: 5–95% non-condensing humidity tolerance ensures performance in Japan’s humid climate.

  • Quick Torque Response: 5ms torque response time enhances control in precision-driven sectors like automotive and robotics.

  • Water-Cooled Options: Liquid-cooled models (up to 3400kW) support energy-intensive applications without overheating.

4. India

  • Voltage Fluctuation Resilience: Handles input voltage ranges from 380V to 690V, ideal for India’s unstable power grids.

  • Cost-Effective Efficiency: ≥98% efficiency reduces electricity costs for SMEs in textiles, agriculture, and manufacturing.

  • Dust and Moisture Resistance: IP40 protection level suits India’s dusty and humid industrial environments.

  • Easy Maintenance: Simple modular units allow quick repairs, minimizing downtime in remote areas.

  • High Overload Capacity: 150% overload for 60 seconds supports sudden load spikes common in Indian industries.

5. Brazil

  • Broad Temperature Tolerance: Operates from -15°C to +55°C, adapting to Brazil’s diverse climates from Amazon heat to southern chills.

  • Multi-Drive Capability: Supports complex multi-drive systems for Brazil’s growing mining and sugarcane processing sectors.

  • Energy Factor Adjustment: Adjustable power factor (factory-set to 1) optimizes energy use under Brazil’s strict regulatory norms.

  • Vibration Resistance: Complies with IEC 60721-3-3:2002, ensuring durability in vibration-prone applications like pulp and paper mills.

  • Localized Cooling Solutions: Air-cooled models (5.5–560kW) are ideal for facilities without advanced cooling infrastructure.
