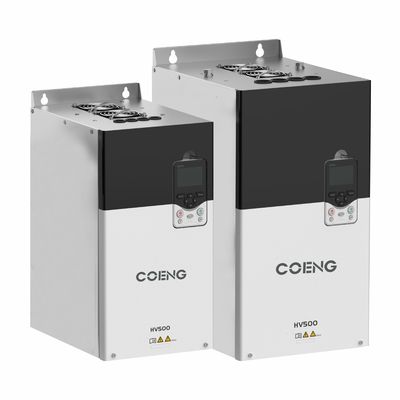

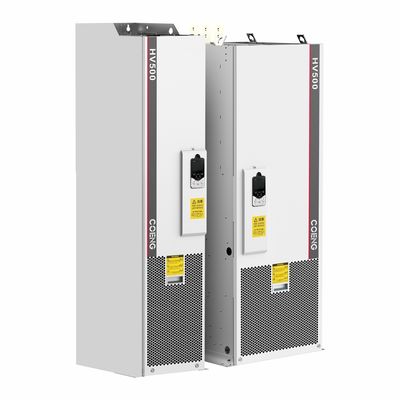

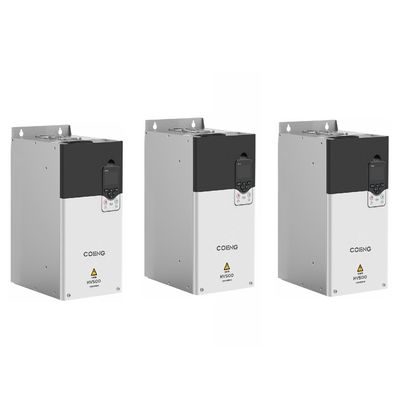

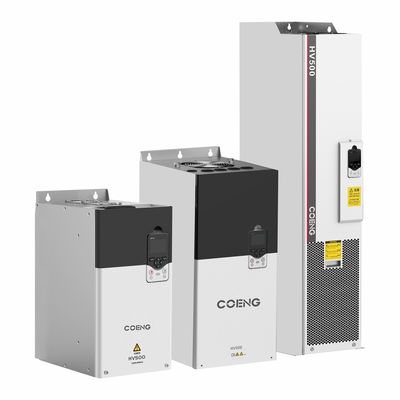

Comprehensive Protection VFD with Overvoltage, Undervoltage, and Phase Loss Safety Features

  • Comprehensive Protection VFD with Overvoltage, Undervoltage, and Phase Loss Safety Features
  • Comprehensive Protection VFD with Overvoltage, Undervoltage, and Phase Loss Safety Features
  • Comprehensive Protection VFD with Overvoltage, Undervoltage, and Phase Loss Safety Features
  • Comprehensive Protection VFD with Overvoltage, Undervoltage, and Phase Loss Safety Features
  • Comprehensive Protection VFD with Overvoltage, Undervoltage, and Phase Loss Safety Features
Lugar de origen PORCELANA
Nombre de la marca COENG
Certificación EC
Número de modelo HV500
Cantidad de orden mínima 1
Detalles de empaquetado Cartón, caja de la madera contrachapada
Tiempo de entrega 10-30 días de trabajo
Condiciones de pago L/C, T/T, Western Union
Capacidad de la fuente 20000SETS/YEAR

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Grado de protección IP20 Camino de enfriamiento Enfriamiento del aire forzado
Eficiencia 5.5kW~22kW: ≥93%; por encima de 30kW: ≥95% Voltaje entrado 200V (-15%) ~ 240V (+10%) 3Fase, 380V (-15%) ~ 480V (+10%) 3Fase, 500V (-15%) ~ 690V (+10%) 3Fase
Frecuencia de entrada Se aplicarán los siguientes requisitos: Voltaje de salida 0V~Voltaje de entrada
Frecuencia de salida 0 Hz ~ 500 Hz
Resaltar

VFD with overvoltage protection

,

frequency inverter with safety features

,

VFD with phase loss protection
Deja un mensaje
Descripción de producto
Operation panel

HIC200-OP-10-W is a smart operator panel developed independently for high-performance transmission products, which is informative, friendly and easy to use, and according to the different configurations of the panel, it is divided into two kinds: wiFi function and without WiFi function, which are conveniently applied to high-performance, single transmission, multi-VFDs system, it can monitor and adjust the system.

Accessory
Optional Module Function
Keyboard Base HVKMB Depending on the situation, the base can be installed in the specified position and the drive
can be operated by operating the keyboard
Communication Adapter HVCOM-USB The drive can achieve high-speed communication with the computer via this option
Profibus-DP Expand Card HVCOM-DP It is for Profibus-DP bus communication, It can fulfill the monitoring and diagnostics of inverters
ABZIncremental Code
disk Expansion Card		 HVPG-ABZ Code disk expansion card, incremental code disk for ABZ signal output, power programmable control, compatible single/bipolar output of the code disk
CANopen Expansion Card HVCOM-CAN It is for CANopen bus commnication, it can fulfill the monitoring and diagnostics of inverters
Three-phase voltage
detection module		 HVVMU Detection of three-phase voltage, it can be used for permanent magnetic synchronous motor
soft start grid, speed tracking and other functions
Technical Specification
Technical Specification
Input/output
Power		 Input Uin 200V (-15%) ~240V (+10%) 3Phase , 380V (-15%) ~480V (+10%) 3Phase,
500V (-15%) ~690V (+10%) 3Phase
Input Frequency 50Hz/60Hz±5%
Unbalance Degree of Uin ≤3%
Output Uout 0V~Input Uin
Output Frequency 0Hz~500Hz
Control
Performance		 Motor Type Asynchronous / Synchronous
Control Method V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control)
Range of Speed Regulation 1:10 V/F, 1:100 OLVC, 1:1000 CLVC
Start Torque VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 180% (0Hz)
Torque Precision ≤5%, Vector Control
Torque Pulsation ≤5%, Vector Control
Speed Regulation Precision OLVC 0.2%, CLVC 0.01%
Torque Response ﹤5ms, Vector Control
Dynamic Speed Reduction OLVC＜0.5%*s, CLVC＜0.3%*s
Acceleration and Deceleration Time 0.0s~3200.0s, 0.0min~3200.0min
Torque Lifting 0.0％~30.0％
Overload Heavy Load Application 150% 1min/5min, Light Load Application 110% 1min/5min
V/F Curve Multiple ways: linear V/F curve, 5 kinds of torque reduction characteristic curve mode (2.0 power, 1.8 power, 1.6 power, 1.4 power, 1.2 power), user-defined VF curve
Input Frequency Accuracy Digital: 0.01Hz, Analog: 0.01Hz
Control
Performance		 Acceleration and Deceleration Curve Straight, S Curve
Multiple Speed-Steps Operation 16-Speed Steps Operation through control terminals
Automatic VoltageAdjustment
(AVR)		 Keeping the output voltage constant automatically when the grid voltage changes within a certain range
Fixed Length Setted and Fixed Length Control
In-build PID It Can Easily Constructed Closed loop control system
Enhencement Function Free Function Block
Input/output
Power		 Set Frequency Keyboaed, UP/DOWN Terminals, Multiple Speed-Steps Operation, Terminals Pulsation, Com
Analog Input Terminals AI1: 0V~10V/-10V~10V, AI2: 0V~10V/0(4) mA~20mA
Digital Input Terminals DI1-DI6, 6 programmable digital input terminals, optocoupler isolation, compatible with drain/source input
Digital Input/Output Terminals DIO1: Fast pulse output, normal input/output; DIO2: fast pulse input, normal input/output
Anolog Output Terminals 2 Strings 0V~10V/0 (4) mA~20mA
Relay Output 2Strings Contact Type FormC
Motor Temperature Detection Support PT100/PT1000/KTY84
STO Interface SIL3/PLe Safe torque shutdown function
Com Com Protocol Modbus RTU (Standard), Pro ibus, CANopen, pro inet, Devicenet, Ethercat
Environment Altitude Without Derating Operation Within 2000m Altitude; 2000m～4000m, Each 100m lifting, Derating 1% (Current)
Operation Temperature -25℃~+40℃ (40℃~55℃ Derating)
Humidity 15%~95%, Without Condensation
Vibration 3M3, IEC60721-3-3
Storage Temperature -40℃~+70℃
Operation Place Indoor, Without direct sunlight, no flammable, corrosive gases, liquids and conductive particles
Accessory Encoding card, communication expansion card, voltage detection card
Protection Function Short circuit, over current, overload, over voltage, under voltage, phase loss, over temperature, external fault, etc.
Efficiency 5.5kW~22kW: ≥93%; Above 30kW: ≥95%
Installation Method Cabinet
Protection Degree IP20
Cooling Forced Air Cooling

Comprehensive Protection VFD with Overvoltage, Undervoltage, and Phase Loss Safety Features 0

Comprehensive Protection VFD with Overvoltage, Undervoltage, and Phase Loss Safety Features 1

United States

  • Q1: What are the key applications of the HV500 inverter in US industrial settings?

    A: The HV500 is ideal for HVAC, pumping, conveyor systems, and manufacturing automation, offering high precision and energy savings compliant with US standards.

  • Q2: How does the HV500 handle voltage fluctuations common in US power grids?

    A: It supports input voltage ranges from 200V to 690V 3-phase with automatic voltage adjustment (AVR), ensuring stable operation even during fluctuations.

  • Q3: Is the HV500 suitable for high-torque applications like heavy machinery?

    A: Yes, with CLVC mode, it provides 180% starting torque at 0Hz, perfect for crushers, presses, and other high-torque machines.

  • Q4: What communication protocols are supported for integration with US PLC systems?

    A: It supports Modbus RTU, Profibus, CANopen, Profinet, Devicenet, and Ethercat, ensuring seamless integration with most US industrial networks.

  • Q5: How does the HV500 perform in high-temperature environments like Texas?

    A: It operates from -25°C to +40°C without derating, and up to 55°C with derating, making it reliable in hot climates.

  • Q6: Does the HV500 meet US safety standards?

    A: Yes, it includes SIL3/PLe safe torque off (STO) and protection against overload, short circuit, and phase loss.

  • Q7: Can the HV500 be used with asynchronous and synchronous motors?

    A: Absolutely, it supports both motor types with flexible control methods (V/F, OLVC, CLVC).

  • Q8: What is the efficiency rating of the HV500?

    A: For models 5.5kW–22kW, efficiency is ≥93%; above 30kW, it’s ≥95%, helping reduce energy costs.

  • Q9: How user-friendly is the HV500 for technicians?

    A: It features multiple speed steps, PID control, and easy terminal programming, reducing setup time.

  • Q10: Does the HV500 offer long-term reliability?

    A: With robust construction, forced air cooling, and protection against dust and moisture (IP20), it ensures long service life.
