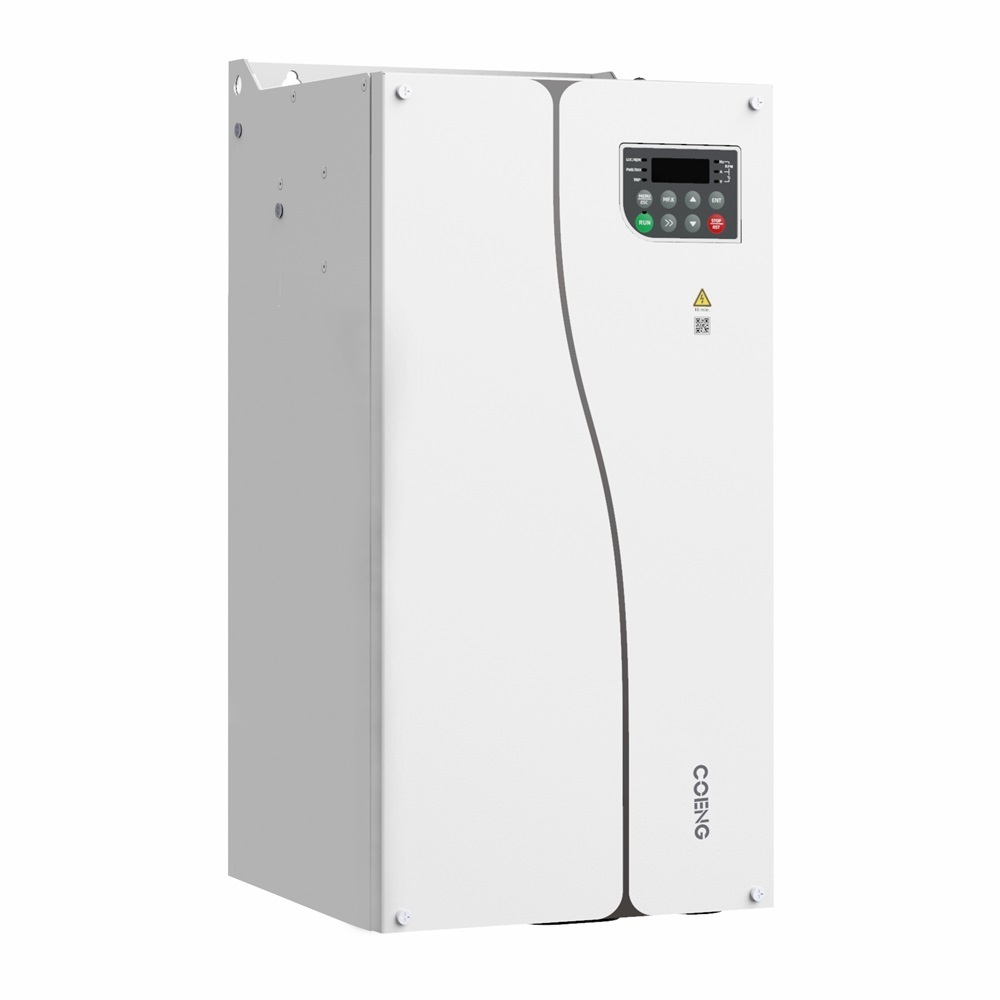

High-Frequency Output up to 600Hz for Demanding Applications

  • High-Frequency Output up to 600Hz for Demanding Applications
  • High-Frequency Output up to 600Hz for Demanding Applications
  • High-Frequency Output up to 600Hz for Demanding Applications
  • High-Frequency Output up to 600Hz for Demanding Applications
Lugar de origen PORCELANA
Nombre de la marca COENG
Certificación CE
Número de modelo HV350
Documento HV350.xlsx
Cantidad de orden mínima 1
Detalles de empaquetado Cartón, caja de la madera contrachapada
Tiempo de entrega 10-30 días hábiles
Condiciones de pago L/C, T/T, Western Union
Capacidad de la fuente 20000SETS/YEAR

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Voltaje de entrada Válvula de entrada: de 380 V (-15%) a 480 V (+10%) Fase: de tres fases Frecuencia de alimentación de entrada Se aplicarán los siguientes requisitos:
Voltaje de salida 0V~Voltaje de entrada Frecuencia de salida 0 ¢ 600 Hz
Tipo de motor de mando maestro Motor asíncrono Rango de velocidades del mando maestro 1:10 V/F;1:100 OLVC;1:1000 CLVC
Modo de control maestro V/F, OLVC ((Control de vectores de circuito abierto), CLVC ((Control de vectores de circuito cerrado
Resaltar

600Hz vector frequency inverter

,

high-frequency inverter for demanding applications

,

vector inverter with 600Hz output
Deja un mensaje
Descripción de producto
Item Specification Description and Technical Data
Power input/output Input voltage Input voltage: 380V (-15%) to 480V (+10%) Phase: Three-phase
Input power frequency 50Hz/60Hz ±5%
Input voltage imbalance ≤3%
Output voltage 0V~Input voltage
Output frequency 0～600Hz
Master control performance Motor type Asynchronous motor
Control mode V/F, OLVC(Open-loop Vector Control)
Speed range 1:100 V/F; 1:200 OLVC
Starting torque OLVC: 150%(0.25Hz)
Torque precision ±5% (OLVC, above 5Hz)
Torque ripple ≤±5%, in Vector control mode
Speed stability OLVC, 0.2%
Torque response ≤5ms, in Vector control mode
Acceleration/deceleration time 0.0s~3200.0s; 0.0min~3200.0min
Torque boost 0.0%~30.0%
Overload capacity G type: 150% 1min/5min; 180%10s/5min; P type: 110% 1min/5min; 150% 10s/5min
V/F curve Straight-line type, multi-point type, V/F Half separation mode, V/F complete separation mode
Input frequency resolution Digital setting: 0.01Hz, Analog setting: maximum frequency ×0.025%
Main functions Acceleration/deceleration curve Straight line and S-curve
Simple PLC, Multi-speed control 16 speed segments supported through control terminals
Automatic voltage regulation (AVR) Automatically keeps the output voltage constant when grid voltage varies within a certain range
Fixed length control Control with given length
Built-in PID Easily forms a closed-loop control system
Multi-motor switching Switchover between two groups of motor parameters to control the two motors
Virtual I/O 8 groups of virtual VDI/VDO, 3 groups of AI as DI, enabling simple logic control
Overvoltage/Overcurrent stall control Automatic current and voltage limitation during operation preventing the inverter from tripping due to frequent overcurrent or overvoltage
Restart after power failure After power failure and restoration, the inverter waits for a set time before automatically running
Quick current limiting Avoids frequent overcurrent faults in the inverter
Power input/output Frequency setting method Keypad; terminal UP/DOWN; multi-reference; pulse reference; communication
Analog input terminals AI1; AI2: 0V~10V/ 0 (4)mA~20mA
Digital input terminals DI1-DI5, 5 programmable digital input terminals with opto-isolation, compatible with both
sinking/sourcing inputs.
DI5 supports high-speed pulse input with a maximum input frequency of 100kHz.
Digital output terminals Open-collector output; output voltage range: 0V~24V; current load capacity: 50mA.
DO1 supports high-speed pulse output with a maximum output frequency of 100kHz.
Analog output terminals 1-channel 0V ~ 10V/0(4)mA ~ 20mA
Relay output 1-channel Form C contact, NO+NC
Communication Communication protocols Modbus RTU (standard configuration); Profibus-DP; Profinet IO; CANopen; Modbus TCP/IP; Ethercat; EtherNet/IP (optional configuration)
Ambient requirements Altitude ≤1000m: no need for derating
1000~3000m: current derating by 1% per 100m increased
Ambient temperature -25℃～+40℃ (Running with derating allowed between 40~55)
Humidity 15% ~ 95%, No condensation
Vibration 3M3, IEC60721-3-3
Storage temperature −40°C~+70°C
Installation place Indoor, without direct sunlight, free from flammable, corrosive gases, liquids, and conductive particles.
Optional accessories Communication expansion card, I/O terminal expansion cards
Protections Protection against short circuit , overcurrent, overload, overvoltage, undervoltage, phase loss, overtemperature, external faults, etc.
Installation method Installed in a cabinet
Protection rating IP20
Cooling method Air cooling

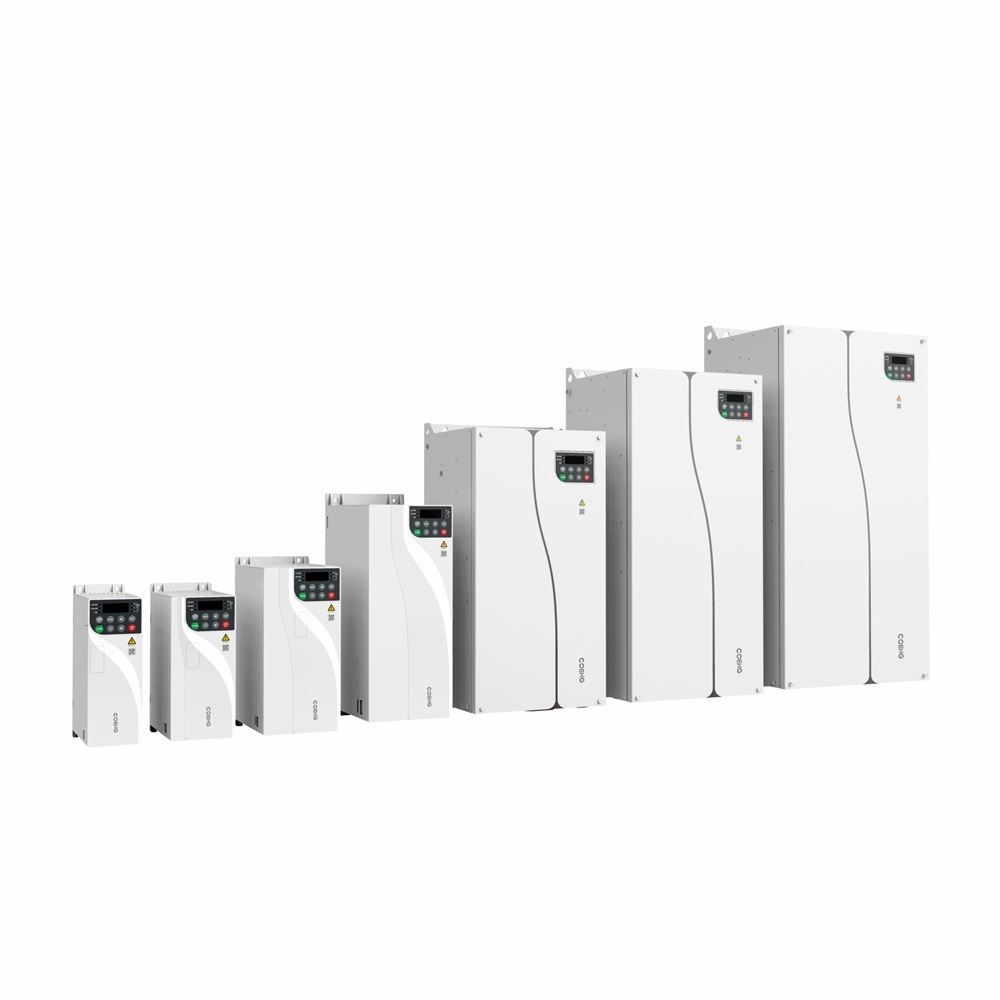

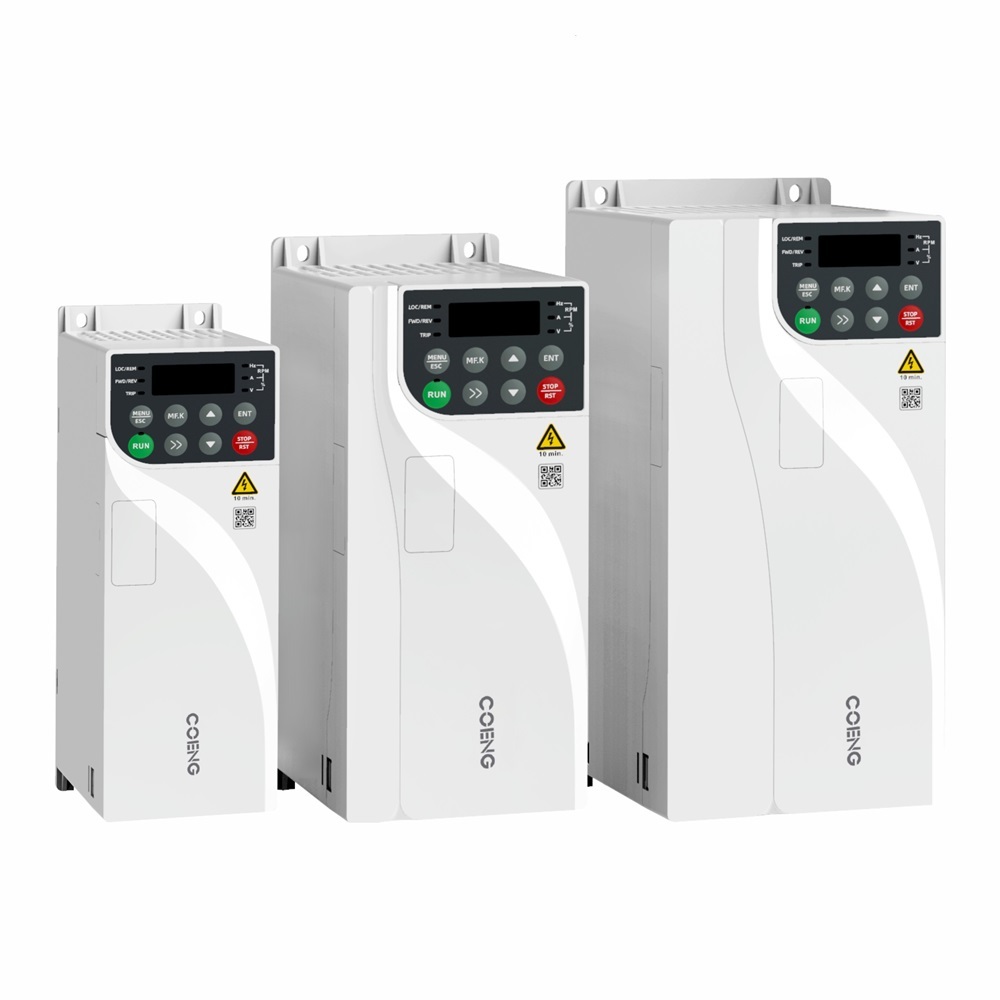

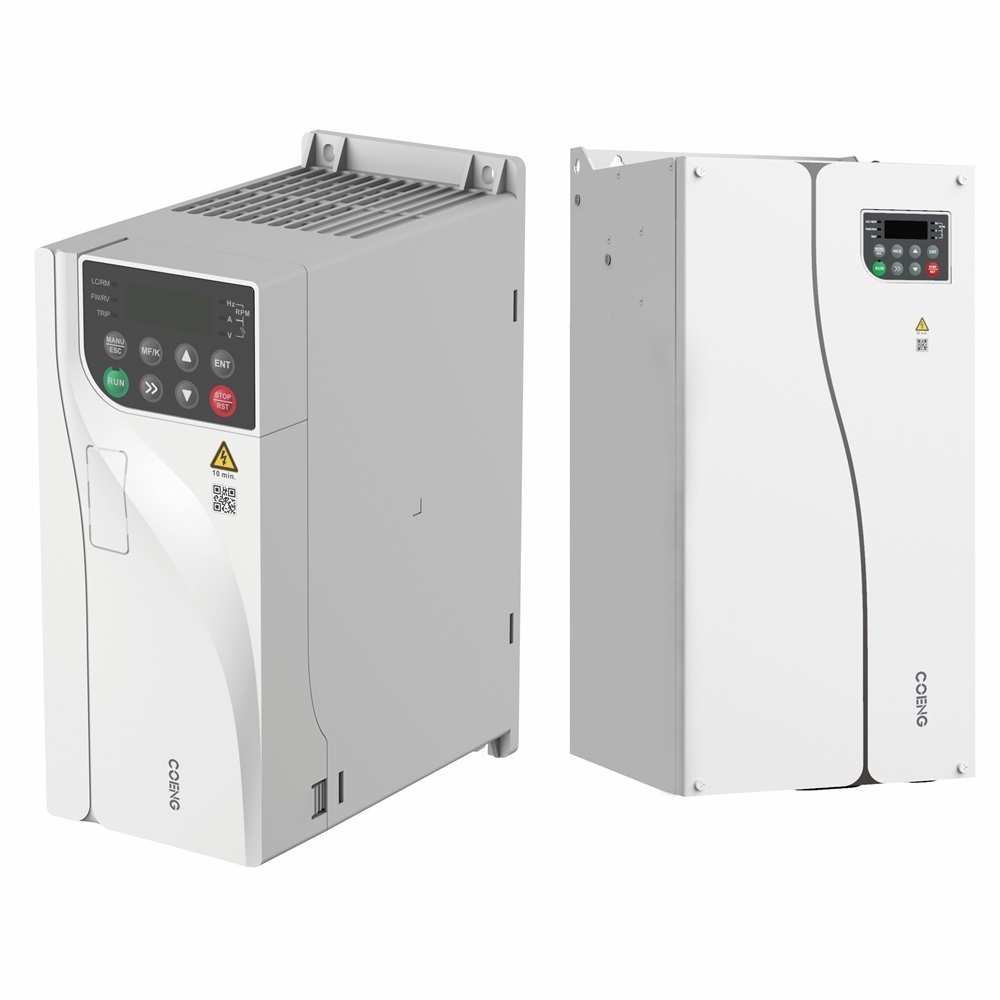

High-Frequency Output up to 600Hz for Demanding Applications 0 High-Frequency Output up to 600Hz for Demanding Applications 1 High-Frequency Output up to 600Hz for Demanding Applications 2

  1. United States
    Maximize productivity in demanding industrial applications with our inverter's wide input voltage range (380V-480V) and robust overload capacity. Its advanced vector control ensures precise speed regulation, ideal for HVAC and pumping systems across diverse US facilities.

  2. Germany
    Engineered for precision, this inverter supports PROFIBUS-DP and PROFINET IO protocols, seamlessly integrating into German automation lines. With IP20 protection and stable performance in humid conditions, it guarantees reliability in high-tech manufacturing environments.

  3. Japan
    Optimize energy efficiency in compact spaces with the inverter’s slim design and flexible frequency settings (0–600Hz). The quick torque response (≤5ms) and vibration resistance make it perfect for Japan’s robotics and electronics sectors.

  4. India
    Built to withstand voltage fluctuations and high temperatures, this inverter ensures uninterrupted operation in Indian industrial zones. Features like automatic restart after power failure and multi-motor switching reduce downtime in manufacturing.

  5. Brazil
    Combat humid and corrosive environments with the inverter’s enhanced protection against moisture and dust. Its multi-speed control and built-in PID support Brazil’s agriculture and processing industries for consistent output.

  6. United Kingdom
    Comply with stringent UK safety standards using the inverter’s comprehensive fault protection (overcurrent, overtemperature). The modular expandability via communication cards suits dynamic production lines.
